oled.h File Reference

File containing the OLED functions. More...

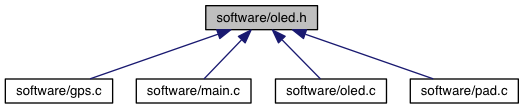

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Macros

#define CURRENT   1
 Current.

#define OLD   0
 OLD.

#define MD_COMPASS   0
 Mode selected on display is compass.

#define MD_NAVIG   1
 Mode selected on display is naviguation.

#define MD_RECORD   2
 Mode selected on display is record.

#define MD_SHUTDOWN   3
 Mode selected on display is shutdown.

#define NONE   ""
 Direction is none.

#define NORTH   "N"
 Direction is north.

#define NE   "NE"
 Direction is north-east.

#define EAST   "E"
 Direction is east.

#define SE   "SE"
 Direction is south-east.

#define SOUTH   "S"
 Direction is south.

#define SW   "SO"
 Direction is south-west.

#define WEST   "O"
 Direction is west.

#define NW   "NO"
 Direction is north-west.

#define OLED_ANSWER_ACK   6
 OLED respond is ACK.

#define ALICEBLUE   0xF7DF
 Color.

#define ANTIQUEWHITE   0xFF5A
 Color.

#define AQUA   0x07FF
 Color.

#define AQUAMARINE   0x7FFA
 Color.

#define AZURE   0xF7FF
 Color.

#define BEIGE   0xF7BB
 Color.

#define BISQUE   0xFF38
 Color.

#define BLACK   0x0000
 Color.

#define BLANCHEDALMOND   0xFF59
 Color.

#define BLUE   0x001F
 Color.

#define BLUEVIOLET   0x895C
 Color.

#define BROWN   0xA145
 Color.

#define BURLYWOOD   0xDDD0
 Color.

#define CADETBLUE   0x5CF4
 Color.

#define CHARTREUSE   0x7FE0
 Color.

#define CHOCOLATE   0xD343
 Color.

#define CORAL   0xFBEA
 Color.

#define CORNFLOWERBLUE   0x64BD
 Color.

#define CORNSILK   0xFFDB
 Color.

#define CRIMSON   0xD8A7
 Color.

#define CYAN   0x07FF
 Color.

#define DARKBLUE   0x0011
 Color.

#define DARKCYAN   0x0451
 Color.

#define DARKGOLDENROD   0xBC21
 Color.

#define DARKGRAY   0xAD55
 Color.

#define DARKGREEN   0x0320
 Color.

#define DARKKHAKI   0xBDAD
 Color.

#define DARKMAGENTA   0x8811
 Color.

#define DARKOLIVEGREEN   0x5345
 Color.

#define DARKORANGE   0xFC60
 Color.

#define DARKORCHID   0x9999
 Color.

#define DARKRED   0x8800
 Color.

#define DARKSALMON   0xECAF
 Color.

#define DARKSEAGREEN   0x8DF1
 Color.

#define DARKSLATEBLUE   0x49F1
 Color.

#define DARKSLATEGRAY   0x2A69
 Color.

#define DARKTURQUOISE   0x067A
 Color.

#define DARKVIOLET   0x901A
 Color.

#define DEEPPINK   0xF8B2
 Color.

#define DEEPSKYBLUE   0x05FF
 Color.

#define DIMGRAY   0x6B4D
 Color.

#define DODGERBLUE   0x1C9F
 Color.

#define FIREBRICK   0xB104
 Color.

#define FLORALWHITE   0xFFDE
 Color.

#define FORESTGREEN   0x2444
 Color.

#define FUCHSIA   0xF81F
 Color.

#define GAINSBORO   0xDEFB
 Color.

#define GHOSTWHITE   0xFFDF
 Color.

#define GOLD   0xFEA0
 Color.

#define GOLDENROD   0xDD24
 Color.

#define GRAY   0x8410
 Color.

#define GREEN   0x0400
 Color.

#define GREENYELLOW   0xAFE5
 Color.

#define HONEYDEW   0xF7FE
 Color.

#define HOTPINK   0xFB56
 Color.

#define INDIANRED   0xCAEB
 Color.

#define INDIGO   0x4810
 Color.

#define IVORY   0xFFFE
 Color.

#define KHAKI   0xF731
 Color.

#define LAVENDER   0xE73F
 Color.

#define LAVENDERBLUSH   0xFF9E
 Color.

#define LAWNGREEN   0x7FE0
 Color.

#define LEMONCHIFFON   0xFFD9
 Color.

#define LIGHTBLUE   0xAEDC
 Color.

#define LIGHTCORAL   0xF410
 Color.

#define LIGHTCYAN   0xE7FF
 Color.

#define LIGHTGOLD   0xFFDA
 Color.

#define LIGHTGREEN   0x9772
 Color.

#define LIGHTGREY   0xD69A
 Color.

#define LIGHTPINK   0xFDB8
 Color.

#define LIGHTSALMON   0xFD0F
 Color.

#define LIGHTSEAGREEN   0x2595
 Color.

#define LIGHTSKYBLUE   0x867F
 Color.

#define LIGHTSLATEGRAY   0x7453
 Color.

#define LIGHTSTEELBLUE   0xB63B
 Color.

#define LIGHTYELLOW   0xFFFC
 Color.

#define LIME   0x07E0
 Color.

#define LIMEGREEN   0x3666
 Color.

#define LINEN   0xFF9C
 Color.

#define MAGENTA   0xF81F
 Color.

#define MAROON   0x8000
 Color.

#define MEDIUMAQUAMARINE   0x6675
 Color.

#define MEDIUMBLUE   0x0019
 Color.

#define MEDIUMORCHID   0xBABA
 Color.

#define MEDIUMPURPLE   0x939B
 Color.

#define MEDIUMSEAGREEN   0x3D8E
 Color.

#define MEDIUMSLATEBLUE   0x7B5D
 Color.

#define MEDIUMSPRINGGREEN   0x07D3
 Color.

#define MEDIUMTURQUOISE   0x4E99
 Color.

#define MEDIUMVIOLETRED   0xC0B0
 Color.

#define MIDNIGHTBLUE   0x18CE
 Color.

#define MINTCREAM   0xF7FF
 Color.

#define MISTYROSE   0xFF3C
 Color.

#define MOCCASIN   0xFF36
 Color.

#define NAVAJOWHITE   0xFEF5
 Color.

#define NAVY   0x0010
 Color.

#define OLDLACE   0xFFBC
 Color.

#define OLIVE   0x8400
 Color.

#define OLIVEDRAB   0x6C64
 Color.

#define ORANGE   0xFD20
 Color.

#define ORANGERED   0xFA20
 Color.

#define ORCHID   0xDB9A
 Color.

#define PALEGOLDENROD   0xEF55
 Color.

#define PALEGREEN   0x9FD3
 Color.

#define PALETURQUOISE   0xAF7D
 Color.

#define PALEVIOLETRED   0xDB92
 Color.

#define PAPAYAWHIP   0xFF7A
 Color.

#define PEACHPUFF   0xFED7
 Color.

#define PERU   0xCC27
 Color.

#define PINK   0xFE19
 Color.

#define PLUM   0xDD1B
 Color.

#define POWDERBLUE   0xB71C
 Color.

#define PURPLE   0x8010
 Color.

#define RED   0xF800
 Color.

#define ROSYBROWN   0xBC71
 Color.

#define ROYALBLUE   0x435C
 Color.

#define SADDLEBROWN   0x8A22
 Color.

#define SALMON   0xFC0E
 Color.

#define SANDYBROWN   0xF52C
 Color.

#define SEAGREEN   0x2C4A
 Color.

#define SEASHELL   0xFFBD
 Color.

#define SIENNA   0xA285
 Color.

#define SILVER   0xC618
 Color.

#define SKYBLUE   0x867D
 Color.

#define SLATEBLUE   0x6AD9
 Color.

#define SLATEGRAY   0x7412
 Color.

#define SNOW   0xFFDF
 Color.

#define SPRINGGREEN   0x07EF
 Color.

#define STEELBLUE   0x4416
 Color.

#define TAN   0xD5B1
 Color.

#define TEAL   0x0410
 Color.

#define THISTLE   0xDDFB
 Color.

#define TOMATO   0xFB08
 Color.

#define TURQUOISE   0x471A
 Color.

#define VIOLET   0xEC1D
 Color.

#define WHEAT   0xF6F6
 Color.

#define WHITE   0xFFFF
 Color.

#define WHITESMOKE   0xF7BE
 Color.

#define YELLOW   0xFFE0
 Color.

#define YELLOWGREEN   0x9E66
 Color.


Functions

void enableUSARTforOLED ()
 Enable and config USART for OLED.

void resetOLED ()
 Reset OLED.

void toggleOLEDInterrupt (unsigned int state)
 Toggle OLED interrupt. More...

void sendChar (int c)
 Send char. More...

void usart1_rx ()
 Receive function for OLED data (USART1, interrupt mode)

void gfx_Clean ()
 Clean the screen.

void gfx_BGcolour (int color)
 Set the background color. More...

void gfx_PutString (char *string)
 Put a string on the screen. More...

void gfx_RectangleFilled (int x1, int y1, int x2, int y2, int color)
 Draw a rectangle filled with a color. More...

void SSTimeout (int t)
 Screensave mode. More...

void setBaudRate ()
 Set the baud rate.

void gfx_CalculateOrbit (int angle, int distance, int *x, int *y)
 Calculate the (x,y) pos (orbit) from angle and distance. More...

void gfx_DrawCircle (int x, int y, int radius, int color)
 Draw a circle. More...

void gfx_DrawLine (int x1, int y1, int x2, int y2, int color)
 Draw a line. More...

void gfx_ScreenMode (int mode)
 Screen mode (portrait/landscape) More...

void gfx_MoveOrigin (int x, int y)
 Move to origin to a position. More...

void gfx_Rectangle (int x1, int y1, int x2, int y2, int color)
 Draw a rectangle. More...

void txt_Width (int multi)
 Set the width of the text. More...

void txt_FGColor (int color)
 Set the text color. More...

void txt_BGColor (int color)
 Set the text background color. More...

void initOLED ()
 Configure OLED for proper using.

void displayMainMenu ()
 Display menu.

void updateMenu ()
 Update the menu with currently selected.

void displayMessage (char *string)
 Display a string in the center of the screen. More...

void displayCompass ()
 Display the compass.

void displayHeader ()
 Display message header.

char * calculateDirection ()
 Calculate the direction (N, S, NE, etc.) More...

void ftoa (char *p, float x)
 Float to string conversion. More...


Variables

unsigned int modeDisplay

unsigned int oldModeDisplay

int displayHasBeenUpdated


Detailed Description

File containing the OLED functions.

Author
Gaƫl Foppolo (gaelfoppolo)

Function Documentation

char* calculateDirection ( )

Calculate the direction (N, S, NE, etc.)

Returns
The direction.

Here is the caller graph for this function:

void displayMessage ( char *  string)

Display a string in the center of the screen.

Parameters
stringThe string to display

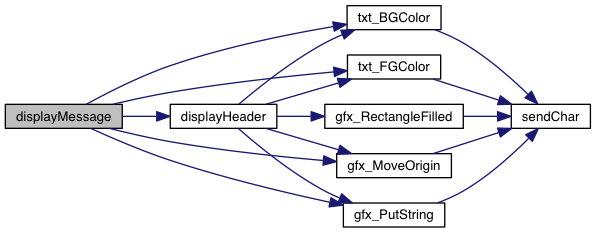

Here is the call graph for this function:

Here is the caller graph for this function:

void ftoa ( char *  p,
float  x
)

Float to string conversion.

Parameters
pThe buffer (string)
[in]xThe float

Here is the caller graph for this function:

void gfx_BGcolour ( int  color)

Set the background color.

Parameters
[in]colorThe color

Here is the call graph for this function:

Here is the caller graph for this function:

void gfx_CalculateOrbit ( int  angle,
int  distance,
int *  x,
int *  y
)

Calculate the (x,y) pos (orbit) from angle and distance.

Parameters
[in]angleThe angle
[in]distanceThe distance
xThe x pos computed
yThe y pos computed

Here is the call graph for this function:

Here is the caller graph for this function:

void gfx_DrawCircle ( int  x,
int  y,
int  radius,
int  color
)

Draw a circle.

Parameters
[in]xx pos of center of the circle
[in]yy pos of center of the circle
[in]radiusThe radius
[in]colorThe color

Here is the call graph for this function:

Here is the caller graph for this function:

void gfx_DrawLine ( int  x1,
int  y1,
int  x2,
int  y2,
int  color
)

Draw a line.

Parameters
[in]x1The x pos of the beginning of the line
[in]y1The y pos of the beginning of the line
[in]x2The x pos of the ending of the line
[in]y2The y pos of the ending of the line
[in]colorThe color

Here is the call graph for this function:

Here is the caller graph for this function:

void gfx_MoveOrigin ( int  x,
int  y
)

Move to origin to a position.

Parameters
[in]xThe new x pos
[in]yThe new y pos

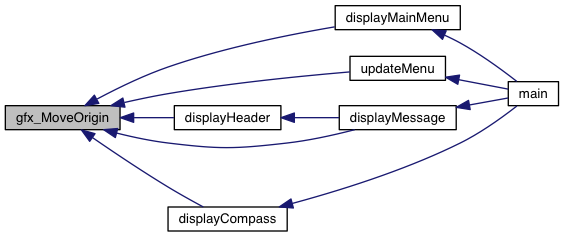

Here is the call graph for this function:

Here is the caller graph for this function:

void gfx_PutString ( char *  string)

Put a string on the screen.

Parameters
stringThe string

Here is the call graph for this function:

Here is the caller graph for this function:

void gfx_Rectangle ( int  x1,
int  y1,
int  x2,
int  y2,
int  color
)

Draw a rectangle.

Parameters
[in]x1The x pos of the top left corner
[in]y1The y pos of the top left corner
[in]x2The x pos of the bottom right corner
[in]y2The y pos of the bottom right corner
[in]colorThe color

Here is the call graph for this function:

Here is the caller graph for this function:

void gfx_RectangleFilled ( int  x1,
int  y1,
int  x2,
int  y2,
int  color
)

Draw a rectangle filled with a color.

Parameters
[in]x1The x pos of the top left corner
[in]y1The y pos of the top left corner
[in]x2The x pos of the bottom right corner
[in]y2The y pos of the bottom right corner
[in]colorThe color

Here is the call graph for this function:

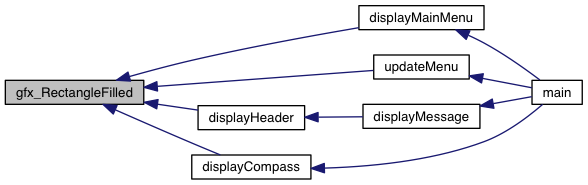

Here is the caller graph for this function:

void gfx_ScreenMode ( int  mode)

Screen mode (portrait/landscape)

Parameters
[in]modeThe mode

Here is the call graph for this function:

Here is the caller graph for this function:

void sendChar ( int  c)

Send char.

Parameters
cThe int to send

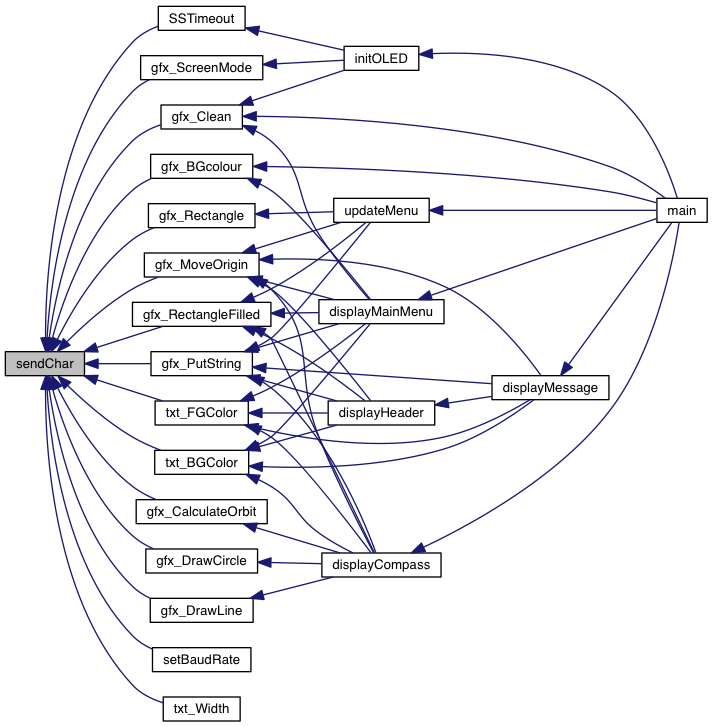

Here is the caller graph for this function:

void SSTimeout ( int  t)

Screensave mode.

Parameters
[in]tThe mode

Here is the call graph for this function:

Here is the caller graph for this function:

void toggleOLEDInterrupt ( unsigned int  state)

Toggle OLED interrupt.

1 = interrupt enable for OLED, 0 = disable

Parameters
stateThe new state

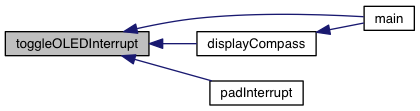

Here is the caller graph for this function:

void txt_BGColor ( int  color)

Set the text background color.

Parameters
[in]colorThe color

Here is the call graph for this function:

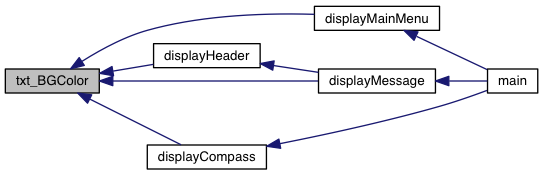

Here is the caller graph for this function:

void txt_FGColor ( int  color)

Set the text color.

Parameters
[in]colorThe color

Here is the call graph for this function:

Here is the caller graph for this function:

void txt_Width ( int  multi)

Set the width of the text.

Parameters
[in]multiThe multi

Here is the call graph for this function:

Variable Documentation

int displayHasBeenUpdated

Is the display has been updated, aka needed

unsigned int modeDisplay

What mode is selected right now

unsigned int oldModeDisplay

What mode was selected just before
