parser_nmea.h File Reference

File containing the NMEA parser functions. More...

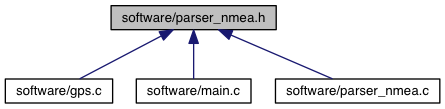

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Data Structures
struct	nmea_sentence_rmc
struct	nmea_sentence_gga

Macros
#define	NMEA_MAX_LENGTH   100
	Maximum length for NMEA sentences.

Typedefs
typedef struct nmea_sentence_rmc	nmea_sentence_rmc
typedef struct nmea_sentence_gga	nmea_sentence_gga

Enumerations
enum	nmea_sentence_id {   NMEA_INVALID = -1, NMEA_UNKNOWN = 0, NMEA_SENTENCE_RMC, NMEA_SENTENCE_GGA,   NMEA_SENTENCE_GSA, NMEA_SENTENCE_GLL, NMEA_SENTENCE_GST, NMEA_SENTENCE_GSV,   NMEA_SENTENCE_VTG }

Functions
int	hex2int (char c)
	Transform hexa to integer. More...
int	nmea_scan (const char *sentence, const char *format,...)
	Scanf-like processor for NMEA sentences. More...
int	nmea_isfield (char c)
	Check if the char is part of the field. More...
enum nmea_sentence_id	nmea_sentence_id (char *sentence)
	Determine sentence identifier. More...
int	nmea_check (const char *sentence, int strict)
	Check sentence validity and checksum. More...
int	nmea_parse_rmc (nmea_sentence_rmc *frame, const char *sentence)
	Parse a RMC sentence. More...
int	nmea_parse_gga (nmea_sentence_gga *frame, const char *sentence)
	Parse a GGA sentence. More...

Detailed Description

File containing the NMEA parser functions.

Author

Gaël Foppolo (gaelfoppolo)

Typedef Documentation

typedef struct nmea_sentence_gga nmea_sentence_gga

The structure that contains the data of GGA sentences

typedef struct nmea_sentence_rmc nmea_sentence_rmc

The structure that contains the data of RMC sentences

Enumeration Type Documentation

enum nmea_sentence_id

The sentence identifier

Function Documentation

int hex2int

(

char

c

)

Transform hexa to integer.

Parameters

[in]

c

An integer (char)

Returns

An integer (hex)

Here is the caller graph for this function:

int nmea_check	(	const char *	sentence,
		int	strict
	)

Check sentence validity and checksum.

Calculate checksum and compare it

Parameters

sentence	The sentence to test
strict	Accept or not sentence with checksum

Returns

1 for valid sentences.

Here is the call graph for this function:

Here is the caller graph for this function:

int nmea_isfield

(

char

c

)

Check if the char is part of the field.

Aka char isn't a comma or star

Parameters

c	The char to test

Returns

1 is valid, 0 if not

Here is the caller graph for this function:

int nmea_parse_gga	(	nmea_sentence_gga *	frame,
		const char *	sentence
	)

Parse a GGA sentence.

Parameters

frame	The struct where to put the parsed data
sentence	The sentence to parse

Returns

1 on success

Here is the call graph for this function:

int nmea_parse_rmc	(	nmea_sentence_rmc *	frame,
		const char *	sentence
	)

Parse a RMC sentence.

Parameters

frame	The struct where to put the parsed data
sentence	The sentence to parse

Returns

1 on success

Here is the call graph for this function:

Here is the caller graph for this function:

int nmea_scan	(	const char *	sentence,
		const char *	format,
			...
	)

Scanf-like processor for NMEA sentences.

Supports the following formats: c - single character (char *) d - direction, returned as 1/-1, default 0 (int *) f - float (float *) o - longitude value, transform all in degrees (float *) a - latitude value, transform all in degrees (float *) i - decimal (integer), default zero (int *) s - string (char *) t - talker identifier and type (char *)

Parameters

sentence	The sentence to parse
format	The format of the sentence

See also

nmea_parse_*** functions for further explanations

Returns

1 on success, 1 if not

Here is the call graph for this function:

Here is the caller graph for this function:

enum nmea_sentence_id nmea_sentence_id

(

char *

sentence

)

Determine sentence identifier.

Parameters

sentence

Then sentence to test

Returns

The type of sentence
